BFT Automation VISTA SW 350 MXL

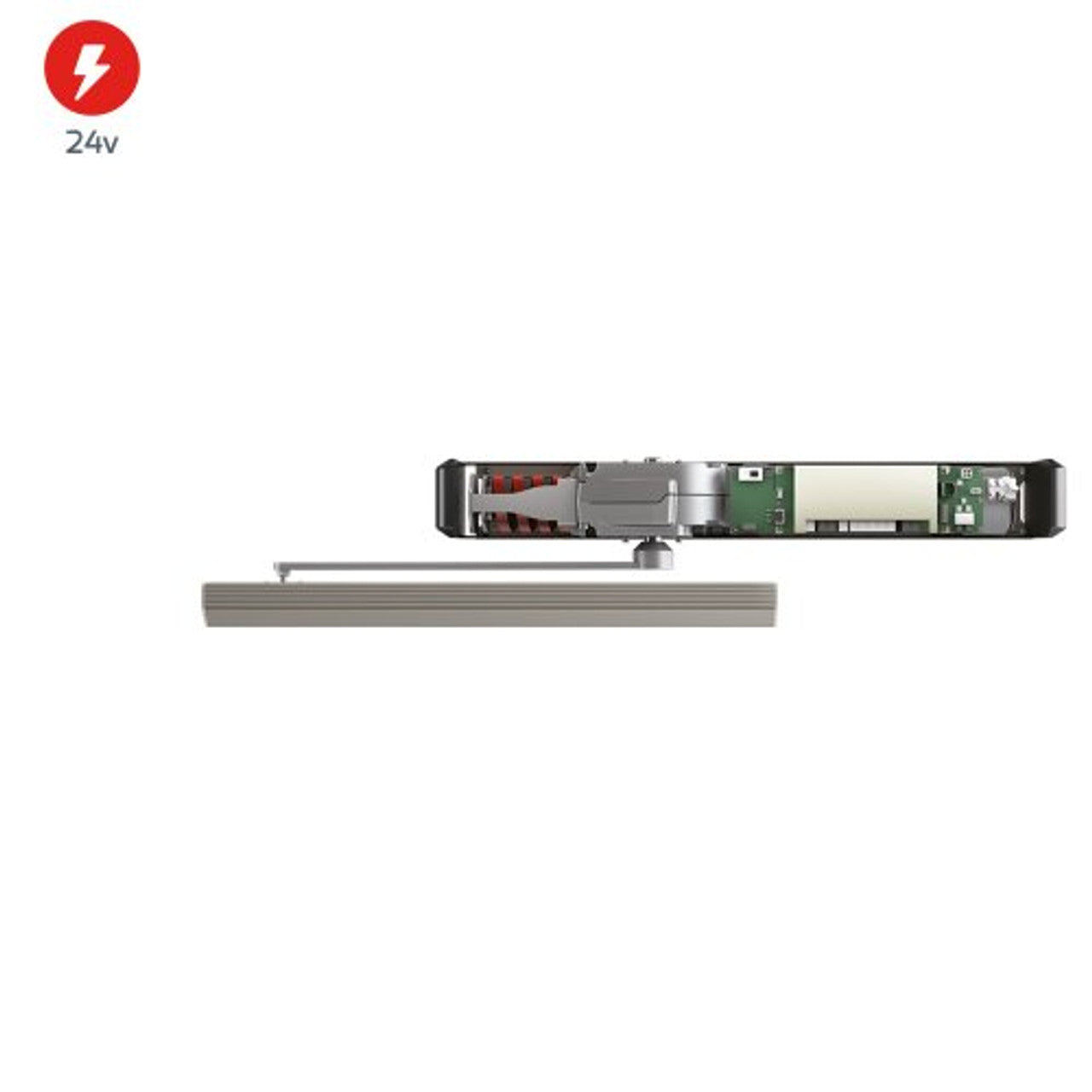

The Vista SW 350 MXL is an automatic swing door operator for pedestrian doors and is suitable for a maximum leaf weight of 350 kg and is ideal for intensive use. The control unit has a programmable display and microprocessor technology, making it possible to control all the main functions automatically.
The Vista SW comes in two versions MXL with motor closing and the SXL with return spring closing. The spring verison is now available in a Fire Rated version, suitable for use on fire-proofed doors.
| Vista SW MXL | Vista SW SXL (available in a Fire Rated version) | |
| Control unit | Digital display and dip switch | Digital display and dip switch |
| Motor type | Dunker motor | Dunker motor |
| Shaft max output torque | 85Nm | 85Nm |
| Open and close | Open and close with motor | Motor open and close with return spring |
| Max leaf weight | 350kg | 350kg |
| Maximum opening angle | 110° | 110° |
| Opening speed | up to 70°/sec | up tp 70°/sec |
| Closing speed | up to 40°/sec | up to 40°/sec |
| Emergency operation | back-up batteries | spring closing/ manual manoeuvre |
| Number of doors | 1 | 1 |
| Motor power supply | 24v | 24v |
| Time of limit switch | encoder | encoder |
| Clear opening | 700mm to 1400mm | 700mm to 1400mm |
| Impact reaction | electronic torque limiter | electronic torque limiter |
| Locking | solenoid lock | solenoid lock |
| Manual cycle | reversible | reversible |
| Use cycle | continuous | continuous |
| Environmental conditions | from -10°C to 50°C | from -10°C to 50°C |
| Protection rating | IP40 | IP40 |
